ISO15552 TPE-U(PU) ISO 6431 FESTO Lightweight Aluminum pneumatic cylinder 532726 DNCB-32-50-PPV-A 532741 DNCB-40-100-PPV-A 532758 DNCB-50-250-PPV-A

Brand Name : FESTO or OEM

Model Number : 532724 DNCB-32-25-PPV-A 532737 DNCB-40-25-PPV-A 532750 DNCB-50-25-PPV-A 532725 DNCB-32-40-PPV-A 532738 DNCB-40-40-PPV-A 532 751 DNCB-50-40-PPV-A 532726 DNCB-32-50-PPV-A 532739 DNCB-40-50-PPV-A 532752 DNCB-50-50-PPV-A 532727 DNCB-32-80-PPV-A 53274

MOQ : 1pc

Price : EXW USD15-165

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1200 pcs per month

Delivery Time : 8-10 working days

Packaging Details : plastic bag, carton，OPP bag

Cylinder barrel : Anodized wrought aluminum alloy

Design : Piston Piston rod

Working Pressure : 0-10Bar

Operating medium : Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium : Lubricated operation possible (in which case lubricated operation will always be required)

Ambient temperature : -20°C-80°C

Piston Material : High-alloy steel,and High-alloy stainless steel

Seals : Polyurethane, nitrile rubber and Fluoro rubber

Bearing and end cap : Wrought aluminium aloy

Constructions : ISO 15552 standard, VDMA 24364-B1/B2-L (cleanroom compatibility), RoHS-compliant

Contact Now

ISO15552 TPE-U(PU) ISO 6431 FESTO Lightweight Aluminum pneumatic cylinder 532726 DNCB-32-50-PPV-A 532741 DNCB-40-100-PPV-A 532758 DNCB-50-250-PPV-A

Order Codes:

532724 DNCB-32-25-PPV-A 532737 DNCB-40-25-PPV-A 532750 DNCB-50-25-PPV-A
532725 DNCB-32-40-PPV-A 532738 DNCB-40-40-PPV-A 532 751 DNCB-50-40-PPV-A
532726 DNCB-32-50-PPV-A 532739 DNCB-40-50-PPV-A 532752 DNCB-50-50-PPV-A
532727 DNCB-32-80-PPV-A 532740 DNCB-40-80-PPV-A 532753 DNCB-50-80-PPV-A
532728 DNCB-32-100-PPV-A 532741 DNCB-40-100-PPV-A 532754 DNCB-50-100-PPV-A
532729 DNCB-32-125-PPV-A 532742 DNCB-40-125-PPV-A 532755 DNCB-50-125-PPV-A
532730 DNCB-32-160-PPV-A 532743 DNCB-40-160-PPV-A 532756 DNCB-50-160-PPV-A
532731 DNCB-32-200-PPV-A 532744 DNCB-40-200-PPV-A 532757 DNCB-50-200-PPV-A
532732 DNCB-32-250-PPV-A 532745 DNCB-40-250-PPV-A 532758 DNCB-50-250-PPV-A
532733 DNCB-32-320-PPV-A 532746 DNCB-40-320-PPV-A 532759 DNCB-50-320-PPV-A
532734 DNCB-32-400-PPV-A 532747 DNCB-40-400-PPV-A 532760 DNCB-50-400-PPV-A
532735 DNCB-32-500-PPV-A 532748 DNCB-40-500-PPV-A 532761 DNCB-50-500-PPV-A
532763 DNCB-63-25-PPV-A 532884 DNCB-80-25-PPV-A 532897 DNCB-100-25-PPV-A
532764 DNCB-63-40-PPV-A 532885 DNCB-80-40-PPV-A 532898 DNCB-100-40-PPV-A
532765 DNCB-63-50-PPV-A 532886 DNCB-80-50-PPV-A 532899 DNCB-100-50-PPV-A
532766 DNCB-63-80-PPV-A 532887 DNCB-80-80-PPV-A 532900 DNCB-100-80-PPV-A
532767 DNCB-63-100-PPV-A 532888 DNCB-80-100-PPV-A 532901 DNCB-100-100-PPV-A
532768 DNCB-63-125-PPV-A 532889 DNCB-80-125-PPV-A 532902 DNCB-100-125-PPV-A
532769 DNCB-63-160-PPV-A 532890 DNCB-80-160-PPV-A 532903 DNCB-100-160-PPV-A
532770 DNCB-63-200-PPV-A 532891 DNCB-80-200-PPV-A 532904 DNCB-100-200-PPV-A
532771 DNCB-63-250-PPV-A 532892 DNCB-80-250-PPV-A 532905 DNCB-100-250-PPV-A
532772 DNCB-63-320-PPV-A 532893 DNCB-80-320-PPV-A 532906 DNCB-100-320-PPV-A
532773 DNCB-63-400-PPV-A 532894 DNCB-80-400-PPV-A 532907 DNCB-100-400-PPV-A
532774 DNCB-63-500-PPV-A 532895 DNCB-80-500-PPV-A 532908 DNCB-100-500-PPV-A

HOW TO ORDER:

ISO15552 TPE-U(PU) ISO 6431 FESTO Lightweight Aluminum pneumatic cylinder 532726 DNCB-32-50-PPV-A 532741 DNCB-40-100-PPV-A 532758 DNCB-50-250-PPV-A

Attribute Specification
Compliance ISO 15552 standard, VDMA 24364-B1/B2-L (cleanroom compatibility), RoHS-compliant
Construction Modular design with double-acting operation for precise control
Components Includes piston rod, cylinder barrel, seals, bearings, cushioning systems, and mounting accessories
Materials - Cylinder Barrel/Piston: Anodized wrought aluminum alloy
- Piston Rod: Hard-chrome-plated tempered steel or high-alloy stainless steel
Seals: C8, FPM, HNBR (temperature-resistant options available)
Cushioning Adjustable pneumatic (PPV), self-adjusting (PPS), or elastic cushioning options
Operating Pressure Optimized for standard industrial pneumatic systems (refer to Festo guidelines)
Temperature Range - Standard seals: -20°C to +80°C
- Low-temperature seals: -40°C to +80°C (TPE-U variants)
Stroke Length 1 mm to 2800 mm (varies by model)
Bore Sizes 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, 125 mm
Mounting Flexible options: female thread, swivel mounts, or accessories (e.g., DPNC multi-position kit)
Weight Varies by size (lightweight aluminum construction ensures easy integration)
Color Natural metallic finish (anodized aluminum)
Lifespan Extended durability due to corrosion-resistant materials and robust sealing systems
Pneumatic Ports G1/8 to G1/2 connections, compatible with standard tubing
Special Features - Optional protective bellows (DADB kit) for harsh environments
- Cleanroom Class 6 (ISO 14644-1) compatibility

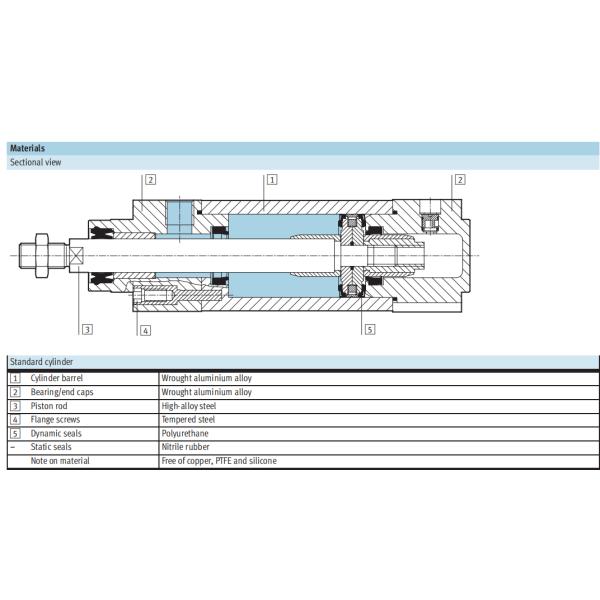

Datasheet:

ISO15552 TPE-U(PU) ISO 6431 FESTO Lightweight Aluminum pneumatic cylinder 532726 DNCB-32-50-PPV-A 532741 DNCB-40-100-PPV-A 532758 DNCB-50-250-PPV-A

Dimension:

ISO15552 TPE-U(PU) ISO 6431 FESTO Lightweight Aluminum pneumatic cylinder 532726 DNCB-32-50-PPV-A 532741 DNCB-40-100-PPV-A 532758 DNCB-50-250-PPV-A

ISO15552 TPE-U(PU) ISO 6431 FESTO Lightweight Aluminum pneumatic cylinder 532726 DNCB-32-50-PPV-A 532741 DNCB-40-100-PPV-A 532758 DNCB-50-250-PPV-A

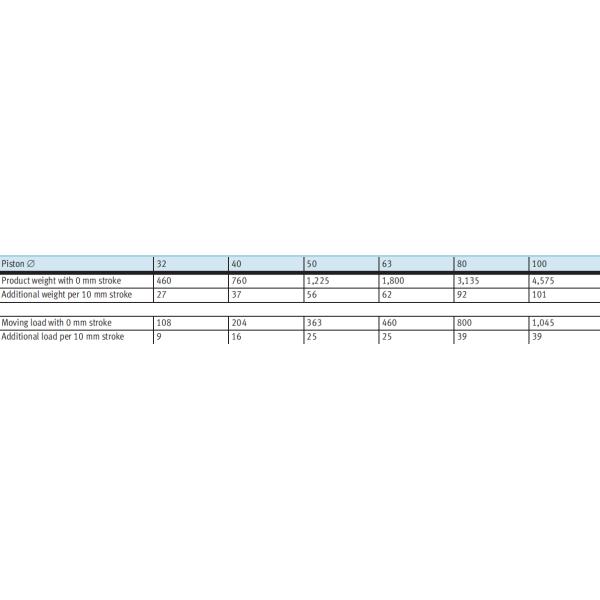

Weight:

ISO15552 TPE-U(PU) ISO 6431 FESTO Lightweight Aluminum pneumatic cylinder 532726 DNCB-32-50-PPV-A 532741 DNCB-40-100-PPV-A 532758 DNCB-50-250-PPV-A
